iM880B-L LR_Base - Long Range Radio Module
The 'iM880B-L LR_Base' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex-M3 controller with the LoRa® transceiver SX1272 of Semtech Corporation. A sensitivity of up to -137 dBm and a maximum output power of +19 dBm result in a link budget of more than 156 dB. Even when reducing the output power to +14 dBm ranges beyond 12 km are feasible in free space (Line of Sight). The 'iM880B-L LR_Base' is pre-certified according to the European RED guideline and can be soldered like an SMD component. The 'iM880B-L LR_Base' includes an embedded protocol stack which allows the setting of six orthogonal spreading sequences, four error correction schemes and three signal bandwidths and thus offers the user a high degree of flexibility. Furthermore it provides various options for configuration and communication via the serial interface. In addition, it is possible to integrate customer specific applications on request. The Radio Module is pre-programmed with LR_Base, a propritary protocol. More information ... LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Inc. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft, Inc.
100 x iM880B-L LR_Base - Tape & Reel - Long Range Radio Module
Please ask always for a quote at sales@imst.de for volumes not offered in the webshop! This article contains 100 units of the 'iM880B-L LR_Base' Radio Module on Tape & Reel for automated pick and place tools. The 'iM880B-L LR_Base' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex-M3 controller with the LoRa® transceiver SX1272 of Semtech Corporation. A sensitivity of up to -137 dBm and a maximum output power of +19 dBm result in a link budget of more than 156 dB. Even when reducing the output power to +14 dBm ranges beyond 12 km are possible in free space. The 'iM880B-L LR_Base' is pre-certified according the European RED guideline and can be soldered like an SMD component. The 'iM880B-L LR_Base' includes an embedded protocol stack which allows the setting of six orthogonal spreading sequences, four error correction schemes and three signal bandwidths and thus offers the user a high degree of flexibility. Furthermore it provides various options for configuration and communication via the serial interface. In addition, it is possible to integrate customer specific applications on request. The Radio Module is pre-programmed with LR_Base, a propritary protocol. More information ... LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Inc. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft, Inc.
iM282A-L LR_Base Plus - Long Range Radio Module
The 'iM282A-L LR_Base Plus' is a compact and low-cost radio module that operates in the unlicensed 2.45 GHz band and combines a powerful Cortex-M3 controller with the new ultra long range transceiver SX1280 of Semtech Corporation. It has been specifically designed for battery driven applications and is able to achieve without any additional amplifiers a LoS range of more than 10 km. The WiMOD LR Base Plus firmware provides LoRa®-modem functionalities which allows to implement proprietary and cost sensitive radio networks with typical topologies like peer-to-peer and star configurations. The embedded radio protocol stack offers unacknowledged and acknowledged radio packet exchange with optional encryption and automatic power saving for battery driven applications. Besides the modem services the firmware includes some example features which are typical for the application area of this LoRa® radio modules: a tiny sensor application which demonstrates a periodic sensor data transmission and a remote control with digital input/ouput via radio link. Finally the supporting software provides two analizing tools, which are helpful in developing radio based applications: Radio Link Test application which allows to analyze the radio link quality for different LoRa® radio settings by means of the typical metrics Packet RSSI, Packet SNR and Packet Error Rate Radio Packet Sniffer which forwards received radio packets These embedded development tools and all the other features can be used in combination with WiMOD LR Studio which offers an easy to use configuration, logging capabilities and data visualisation. LoRa® is a registered trademark of Semtech, Inc.
iM881A-XL LR_Base - Long Range Radio Module
The LoRa® technology of Semtech, Inc. provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. The 'iM881A-XL LR_Base' is especially suitable for battery driven devices. It consumes only 38 mA in transmit mode with +14 dBm and 25 mA @ +10 dBm. Here the radio modules comes with the proprietary protocol version LR_Base. Frequency: 868 MHz Range (LoS): up to 15,000 m RF power: up to +14 dBm Sensitivity: down to -137 dBm LoRa® is a registered trademark of Semtech Corporation.

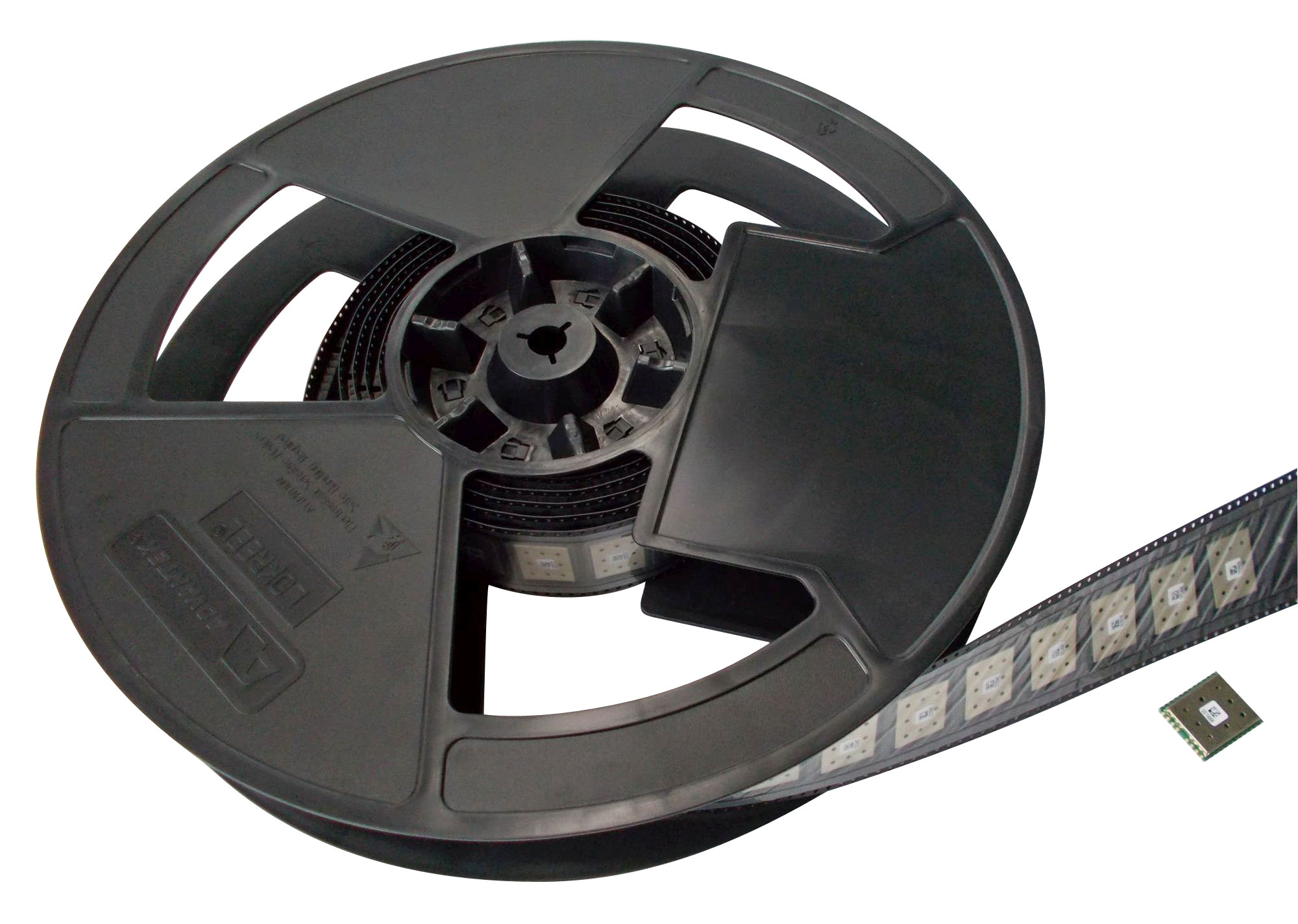

100 x iM881A-XL LR_Base - Tape & Reel - Long Range Radio Module
Please ask always for a quote at sales@imst.de for volumes not offered in the webshop! This article contains 100 units of the 'iM881A-XL LR_Base' radio module on Tape & Reel for automated pick and place tools. The LoRa® technology of Semtech, Inc. provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. The 'iM881A-XL LR_Base' is especially suitable for battery driven devices. Frequency: 868 MHz Range (LoS): up to 15,000 m RF power: up to +14 dBm Sensitivity: down to -137 dBm LoRaWAN™: iM881A-XL pre-programmed with the LoRaWAN™-protocol (LoRa Alliance™ certified)(non-personalized: DevEUI set, all other parameter (DevAddr, NwkSKey, AppSKey, AppKey set to zero)) LoRaWAN™ is a trademark of the LoRa Alliance™, LoRa® is a registered trademark of Semtech Corporation.
iM282A-L GlobalLink24 LoRa Radio Module
The 'iM282A-L GlobalLink24 LoRa Radio Module' is a compact and low-cost radio module that operates in the unlicensed 2.45 GHz band and combines a powerful Cortex-M3 controller with the ultra long range transceiver SX1280 of Semtech Corporation. It has been specifically designed for battery driven applications and is able to achieve without any additional amplifiers a LoS range of more than 10 km. This module is pre-certified according the European RED guideline and can be soldered like an SMD component. The iM282A-L is pre-programmed with GlobalLink24 protocol stack, a new firmware emulating LoRaWAN® at 2.45 GHz. It provides various options for configuration and communication via the serial interface.
iM980B-L Prolink LoRaWAN MBAND - Long Range Radio Module
The 'iM980B-L Prolink LoRaWAN MBAND' is a compact and low-cost radio module that operates in the unlicensed 915 MHz band and combines a powerful Cortex-M3 controller with the LoRa® transceiver of Semtech Corporation. A sensitivity of down to -138 dBm and a maximum output power of +18.5 dBm results in a link budget of more than 155 dB. The 'iM980B-L' has received Federal Communications Commission (FCC) CFR47 Telecommunications, Part 15 Subpart C modular approval in accordance with Part 15.212 Modular Transmitter Statement about FCC. Its firmware supports the US915 and AU915 frequency bands and it is LoRaWAN® certified. It enables Low Power Wide Area Networks (LPWANs) for Internet-of-Things (IoT) and Machine-to Machine (M2M) applications and supports Direct or Over The Air Activation (OTAA). LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Corp.
iM880B-L Prolink LoRaWAN V3.0 EU868 - Long Range Radio Module
The 'iM880B-L Prolink LoRaWAN V3.0 EU868' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex® M3 controller with the LoRa® transceiver of Semtech® Corporation. A sensitivity of up to -137 dBm and a maximum output power of +19 dBm result in a link budget of more than 156 dB. Even when reducing the output power to +14 dBm ranges beyond 15 km are possible in free space. The iM880B-L is pre-certified according the European RED guideline and can be soldered like an SMD component. The pre-programmed ProLink LoRaWAN® firmware v3.0 (compliant with LoRaWAN® specification v1.0.4) supports Class A and Class C (unicast and multicast messages) and brings a new functionality that allows a device-to-device LoRa® communication. Furthermore it provides various options for configuration and communication via the serial interface. LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Inc. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft, Inc.

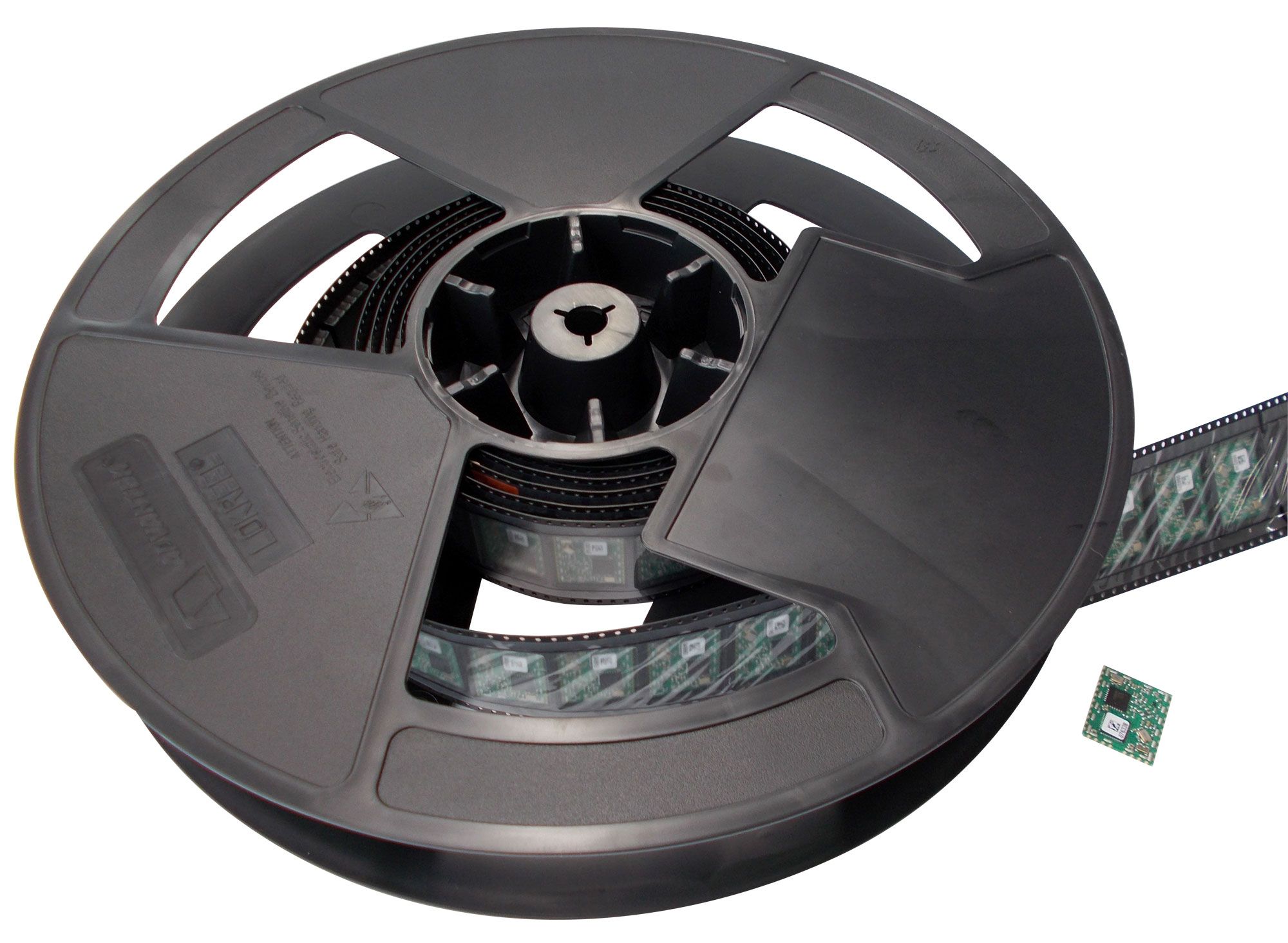

100 x iM880B-L Prolink LoRaWAN 3.0 EU868 - Tape & Reel - Long Range Radio Module
Please ask for a quote at sales@imst.de for volumes not offered in the webshop! This article contains 100 units of the 'iM880B-L Prolink LoRaWAN 3.0 EU868' Radio Module on Tape & Reel for automated pick and place tools. The 'iM880B-L Prolink LoRaWAN 3.0 EU868' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex® M3 controller with the LoRa® transceiver of Semtech® Corporation. A sensitivity of up to -137 dBm and a maximum output power of +19 dBm result in a link budget of more than 156 dB. Even when reducing the output power to +14 dBm ranges beyond 15 km are possible in free space. The iM880B-L is pre-certified according the European RED guideline and can be soldered like an SMD component. The pre-programmed ProLink LoRaWAN® firmware v3.0 (compliant with LoRaWAN® specification v1.0.4) supports Class A and Class C (unicast and multicast messages) and brings a new functionality that allows a device-to-device LoRa® communication. Furthermore it provides various options for configuration and communication via the serial interface. In addition, it is possible to integrate customer specific applications on request. LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Inc. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft, Inc.
iM881A-XL Prolink LoRaWAN 3.0 EU868 - Long Range Radio Module
The 'iM881A-XL LoRaWAN Prolink 3.0 EU868' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex® M0+ controller with the LoRa® transceiver of Semtech® Corporation. It has been specifically designed for battery driven devices. It consumes 28 mA in transmission with the maximum output power of +13 dBm. Combined with an excellent sensitivity of down to -138 dBm a range of 12 km can be achieved in free space environment. The iM881A-XL is pre-certified according the European RED guideline and can be soldered like an SMD component. The pre-programmed ProLink LoRaWAN® firmware v3.0 (compliant with LoRaWAN® specification v1.0.4) supports Class A and Class C (unicast and multicast messages) and brings a new functionality that allows a device-to-device LoRa® communication. Furthermore it provides various options for configuration and communication via the serial interface. LoRaWAN™ is a trademark of the LoRa Alliance™, LoRa® is a registered trademark of Semtech Corporation.
100 x iM881A-XL Prolink LoRaWAN 3.0 EU868- Tape & Reel - Long Range Radio Module
Please ask for a quote at sales@imst.de for volumes not offered in the webshop! This article contains 100 units of the 'iM881A-XL Prolink LoRaWAN 3.0 EU868' radio module on Tape & Reel for automated pick and place tools. The 'iM881A-XL Prolink LoRaWAN 3.0 EU868' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex® M0+ controller with the LoRa® transceiver of Semtech® Corporation. It has been specifically designed for battery driven devices. It consumes 28 mA in transmission with the maximum output power of +13dBm. Combined with an excellent sensitivity of down to -138 dBm a range of 12 km can be achieved in free space environment. The iM881A-XL is pre-certified according the European RED guideline and can be soldered like an SMD component. The pre-programmed ProLink LoRaWAN® firmware v3.0 (compliant with LoRaWAN® specification v1.0.4) supports Class A and Class C (unicast and multicast messages) and brings a new functionality that allows a device-to-device LoRa® communication. Furthermore it provides various options for configuration and communication via the serial interface. LoRaWAN™ is a trademark of the LoRa Alliance™, LoRa® is a registered trademark of Semtech Corporation.
iM980B-L Prolink LoRaWAN V3.0 EU868 - Long Range Radio
The 'iM980B-L Prolink LoRaWAN V3.0 EU868 - Long Range Radio' is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex-M3 controller with the LoRa® transceiver of Semtech Corporation. A sensitivity of down to -138 dBm and a maximum output power of +18.5 dBm results in a link budget of more than 155 dB. The 'iM980B-L Prolink LoRaWAN V3.0 EU868 - Long Range Radio' is pre-certified according the European RED guideline and can be soldered like an SMD component. Its firmware supports the EU868 frequency band and it is LoRaWAN® certified. The pre-programmed 'ProLink LoRaWAN firmware v3.0 EU868' (compliant with LoRaWAN® specification v1.0.4) supports Class A and Class C (unicast and multicast messages) and brings a new functionality that allows a device-to-device LoRa® communication. Furthermore it provides various options for configuration and communication via the serial interface. LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech, Corp.

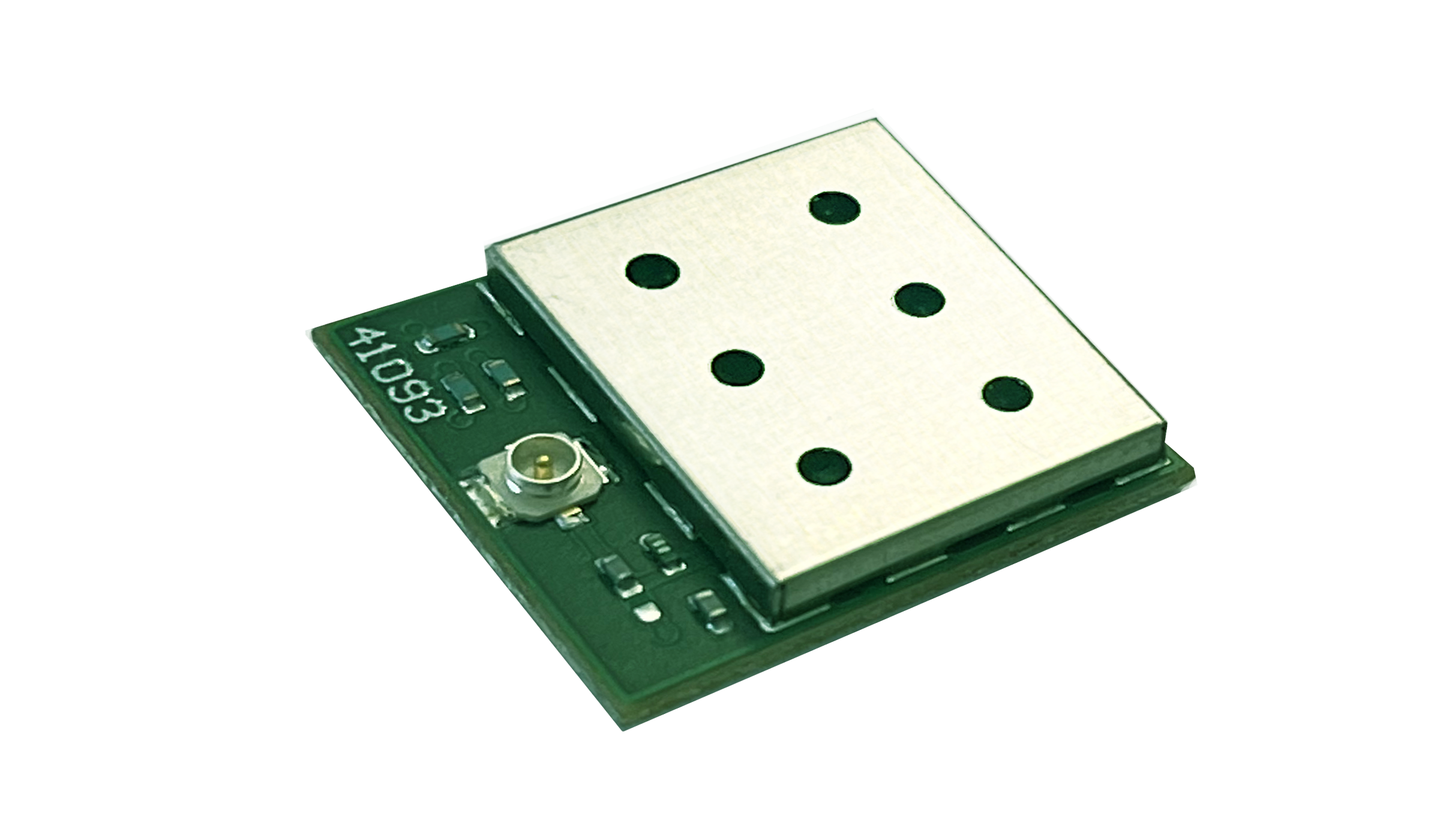

iM891A-XL - Prolink LoRaWAN Module 868 MHz w. u.fl
The iM891A-XL is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex® M4 controller with the LoRa® transceiver of Semtech® Corporation. With an integrated +22 dBm power amplifier and a sensitivity of -149 dBm, a sensational link budget of 170 dB can be reached. This makes the iM891A-XL an ideal solution for numerous applications such as IoT sensors or home-, building- and industrial-automation. Note: To connect the module with a SMA antenna (404829 or 404825), a pigtail cable (404812) ist required, see accessories below.
iM891A-XL - Prolink LoRaWAN Module 868 MHz
The iM891A-XL is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex® M4 controller with the LoRa® transceiver of Semtech® Corporation. With an integrated +22 dBm power amplifier and a sensitivity of -149 dBm, a sensational link budget of 170 dB can be reached. This makes the iM891A-XL an ideal solution for numerous applications such as IoT sensors or home-, building- and industrial-automation.
