iOKE868 LoRaWAN® Smart Metering Kit
The ‘iOKE868 LoRaWAN® Smart Metering Kit’ leverages the long range and low power consumption of LoRa® to provide real-time data monitoring of energy consumption and secure connectivity to the LoRaWAN® IoT network. It is compatible with most modern smart meters (compliant with IEC62056-21 and SML messages). The ‘iOKE868 LoRaWAN® Smart Metering Kit’ can be attached magnetically to the smart meter to read out the infrared interface, extract the desired values and transfer those to the LoRaWAN® network with a period defined by the user. The external antenna provides a maximum flexibility during installation in difficult RF environments. A user-friendly configuration tool offers an easy way to change the radio, calendar and filter settings. These advantages result in a far more comprehensive and detailed feedback on energy consumption and enables a significant reduction of operational costs. The product includes the following parts: iO881A optical reading head USB-cable for power supply (1.8 m) antenna (magnetic base) with 2.0 m cable. The ‘iOKE868 LoRaWAN® Smart Metering Kit’ comes without any power supply, please choose between battery-holder and power-supply unit (USB), see accessories, if needed. Note 1: The configuration can be managed Over-The-Air via LoRa® messages or via wired serial interface (Windows PC tool).Note 2: In certain countries, i.e. Austria, the optical interface might be subject to an encryption according to "Smart Metering Requirements VO 2011". This feature is currently not supported by this product.
Lite Gateway - Demonstration Platform for LoRa® Technology
The Lite Gateway (LGW) is a demonstration and evaluation platform consisting of the pre-certified concentrator iC880A-SPI, a Raspberry Pi, a pre-configured SD-card and a housing. The product requires an SMA-Antenna (868 MHz) and a Power Supply Unit (5 V, 2.5 A), see accessories. The Power Supply requires a 5.5mm/2mm barrel to connect the Lite Gateway Unit. This device enables LoRa-customers to demonstrate and evaluate LoRaWAN™ features, and can be easily connect to existing servers (e.g. iot.semtech.com , Loriot). The source code of firmware is provided by the open source github project lora-net) This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by IMST GmbH to be finished end - product fit for general consumer use. More Information LoRaWAN™ is a trademark of the LoRa Alliance®, LoRa®, LoRa Alliance® are registered trademarks of Semtech.
Wireless Range Extender
The 'Wireless Range Extender' is a compact and cost-effective device that collects Wireless M-Bus messages from utility meters and forwards them to a LoRaWAN® network. This product extends significantly the range of systems and allows filtering those messages by manufacturer ID (M-field) and sender address (A-field) to select specific groups of measuring instruments. The range extender allows a flexible configuration of calendar events for Wireless M-Bus reception intervals and status messages as well as device filtering by manufacturer ID and device ID (whitelist). The configuration can be managed Over-The-Air via LoRa® messages or via a wired serial interface. Beside the Wireless M-Bus functionality the firmware supports a LoRaWAN® compliant protocol stack as well as a proprietary LoRa® stack for wireless Point-to-Point and Point-to-Multipoint communication. A configuration cable is required to initialize and change the settings. The article 'Configuration Cable for Wireless M-Bus Range Extender' can be chosen as an accessory in this webshop, too. Note 1: The product is only available to professional and business users, the supplier IMST reserves the right to reject any non-business purchases. Note 2: The product contains a Lithium-Ion Battery. Due to transport security regulations, the product is currently available in the folloeing countries only: Germany, Austria, Belgium, Denmark, France, Hungary, Italy, Luxembourg, Netherlands, Norway, Sweden, Schwitzerland, Slowenia, Slowakia, Poland, Rumänia, Ireland, Spain, Portugal. We may decide to reject your purchase order in other cases. If you still desire to have this product in other regions, you may ask for an individual quote at sales@imst.de with dedicated shipment conditions. In future the product may be available also without a battery or with a separate power supply. Shipments will be done via DHL Package International only. LoRa® is a registered trademark of Semtech. LoRaWAN® is a registered trademark of the LoRa Alliance.

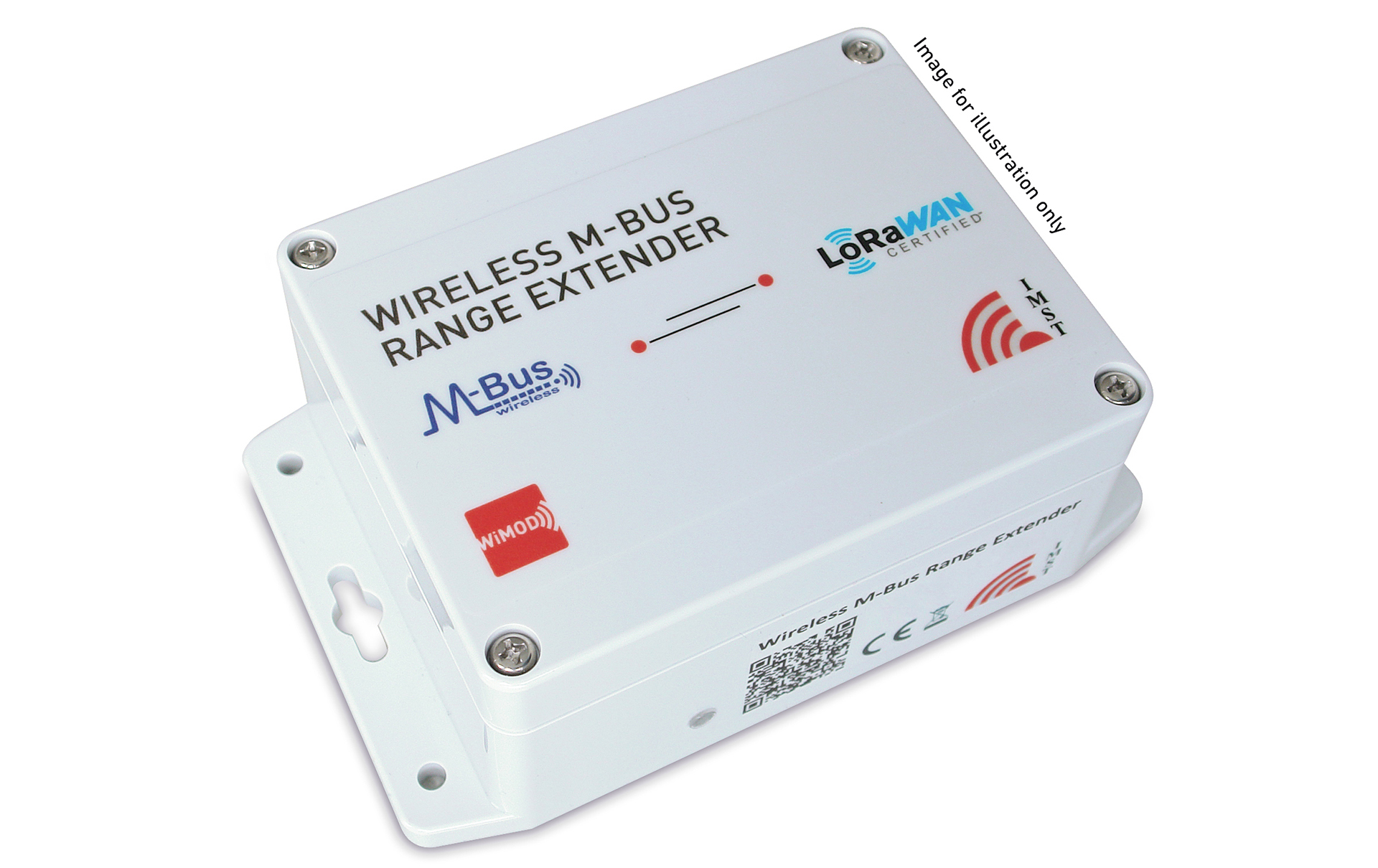

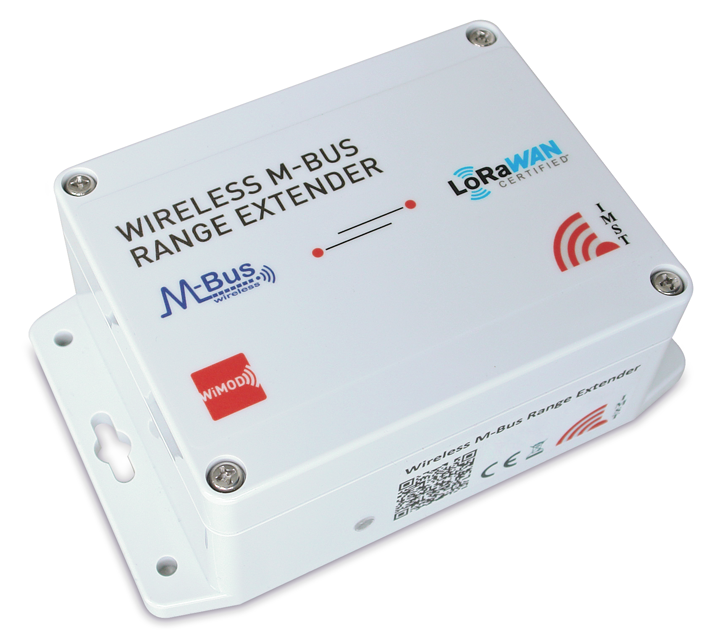

Wireless M-Bus Range Extender
The 'Wireless Range Extender' is a compact and cost-effective device that collects Wireless M-Bus messages from utility meters and forwards them to a LoRaWAN® network. It offers a flexible way to define hourly, daily, weekly or monthly reception windows for collecting WM-Bus messages and a large data memory for temporary buffering. The wM-Bus Range Extender allows a smart configuration of calendar events for WM-Bus reception intervals and status messages as well as device filtering by Manufacturer ID and Device ID (whitelist). Additionally a “duplicate filter” can be set to avoid processing or forwarding identical messages multiple times. The configuration can be managed Over-The-Air via LoRaWAN® downlink messages or via a wired serial interface. A configuration cable is required to initialize and change the settings. The article 'Configuration Cable for Wireless M-Bus Range Extender' can be chosen as an accessory in this webshop, too. Note 1: The product is only available to professional and business users, the supplier IMST reserves the right to reject any non-business purchases. Note 2: The product contains a Lithium-Ion Battery. Due to transport security regulations, the product is currently available in the folloeing countries only: Germany, Austria, Belgium, Denmark, France, Hungary, Italy, Luxembourg, Netherlands, Norway, Sweden, Schwitzerland, Slowenia, Slowakia, Poland, Rumänia, Ireland, Spain, Portugal. We may decide to reject your purchase order in other cases. If you still desire to have this product in other regions, you may ask for an individual quote at sales@imst.de with dedicated shipment conditions. In future the product may be available also without a battery or with a separate power supply. Shipments will be done via DHL Package International only. LoRa® is a registered trademark of Semtech. LoRaWAN® is a registered trademark of the LoRa Alliance.
Bundle iU891A-XL - Prolink LoRaWAN USB-Adapter 868 MHz w. antenna
This is an LoRaWAN article, it is not intended for metering applications. The bundle iU891A-XL Prolink LoRaWAN (includes USB-Stick and antenna) is a compact and cost–effective USB stick based on the Long Range Radio Module iM891A-XL that operates in the unlicensed 868 MHz band. With an integrated +22 dBm power amplifier and a sensitivity of -149 dBm, a sensational link budget of approx. 170 dB can be reached. This makes the iU891A-XL an ideal solution for numerous applications such as LPWAN and IoT sensors, as well as home-, building- and industrial-automation.
