iOKE868 LoRaWAN® Smart Metering Kit
€109.00
% Regular price: €119.00 (8.4% saved)
Product information "iOKE868 LoRaWAN® Smart Metering Kit"
The ‘iOKE868 LoRaWAN® Smart Metering Kit’ leverages the long range and low power consumption of LoRa® to provide real-time data monitoring of energy consumption and secure connectivity to the LoRaWAN® IoT network. It is compatible with most modern smart meters (compliant with IEC62056-21 and SML messages).

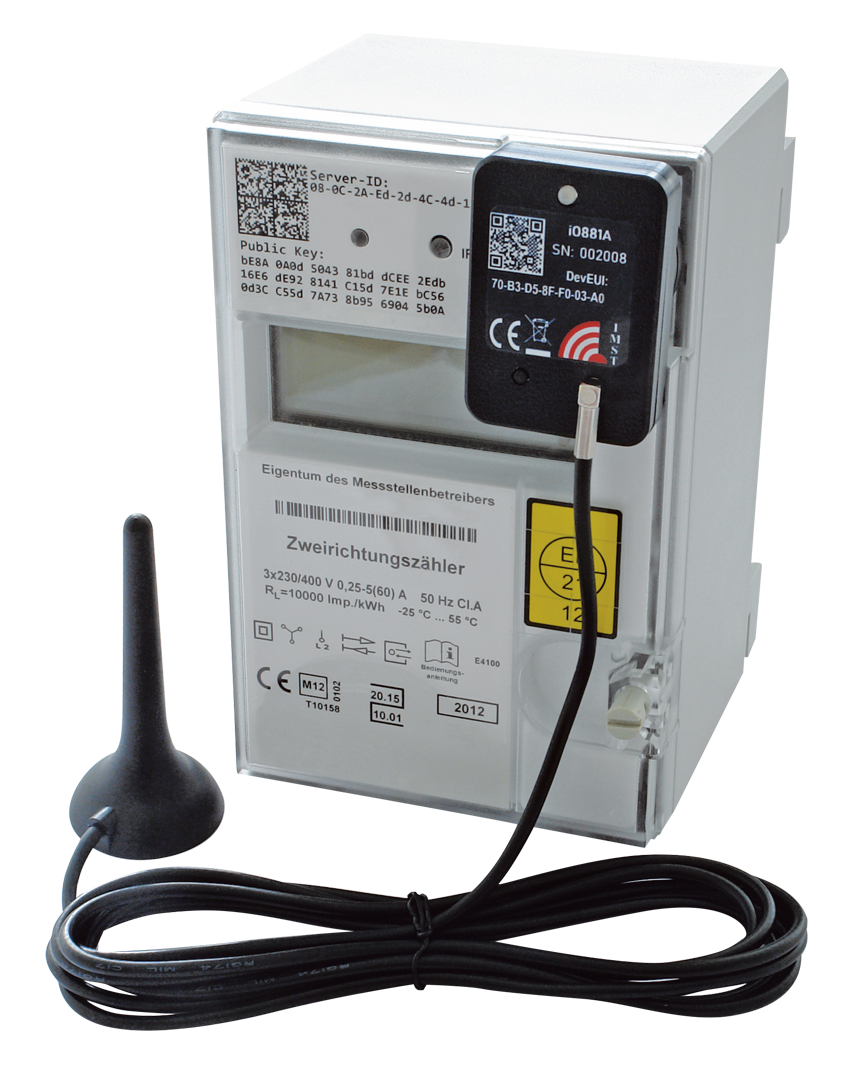

The ‘iOKE868 LoRaWAN® Smart Metering Kit’ can be attached magnetically to the smart meter to read out the infrared interface, extract the desired values and transfer those to the LoRaWAN® network with a period defined by the user.
The external antenna provides a maximum flexibility during installation in difficult RF environments. A user-friendly configuration tool offers an easy way to change the radio, calendar and filter settings. These advantages result in a far more comprehensive and detailed feedback on energy consumption and enables a significant reduction of operational costs.

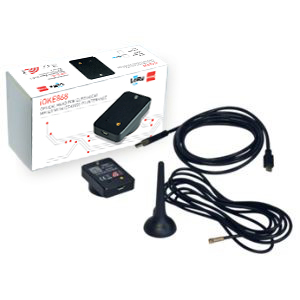

The product includes the following parts:

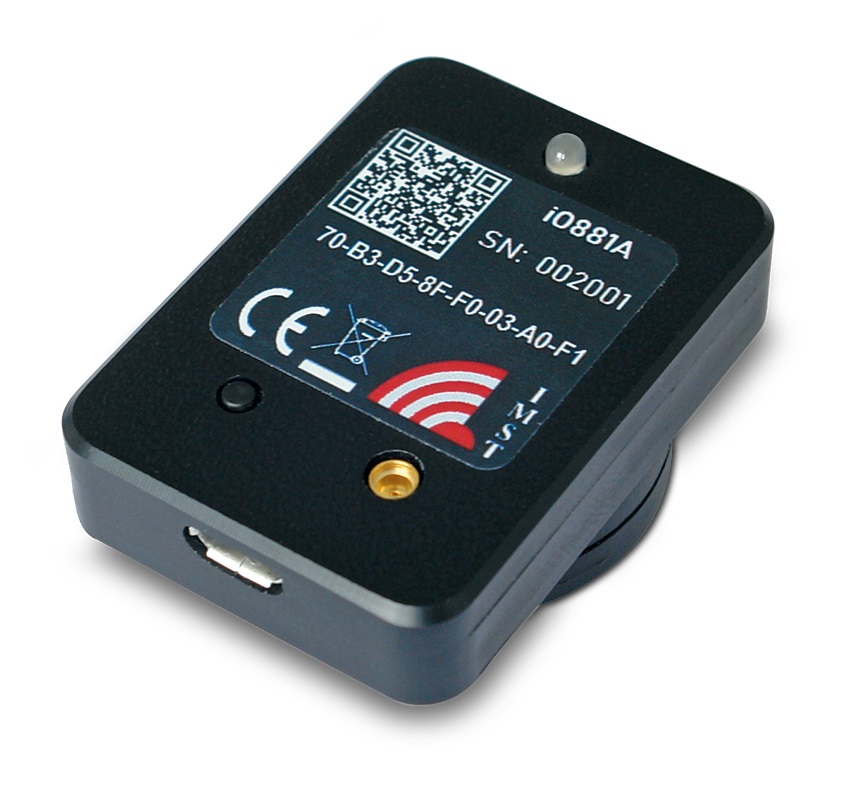

- iO881A optical reading head
- USB-cable for power supply (1.8 m)
- antenna (magnetic base) with 2.0 m cable.
The ‘iOKE868 LoRaWAN® Smart Metering Kit’ comes without any power supply, please choose between battery-holder and power-supply unit (USB), see accessories, if needed.
Note 1: The configuration can be managed Over-The-Air via LoRa® messages or via wired serial interface (Windows PC tool).
Note 2: In certain countries, i.e. Austria, the optical interface might be subject to an encryption according to "Smart Metering Requirements VO 2011". This feature is currently not supported by this product.
Login
Accessory Items
This accessory can be ordered in addition to the product ‘iOKE868 LoRaWAN® Smart Metering Kit’ to get it independent from electrical power grids (batteries are not included). Battery Holder (3x AA), Switch and USB-Connector.
This accessory can be ordered in addition to the product ‘iOKE868 LoRaWAN® Smart Metering Kit’ to connect it to electrical power grids.
